Product Description

Description

ESP-01 is Wi-Fi serial transceiver module based on ESP8266.The SOC has Integrated TCP/IP protocol stack.It is TTL serial communication interface and its parameters can be set by AT command. It is widely used in networking, smart home project when it is connected to the wifi router. It can be used for remote monitoring of home appliances, bedroom temperature and humidity, controlling home appliances and smart car by the mobile phone.

USB to ESP-01 adapter module has CH340G USB to TTL driver IC onboard, so you can easily use your computer to do ESP-01 functional debugging and upgrade the firmware. ESP-01 serial wifi module can be directly plugged into the yellow pin header without any connection wires.

Features:

– Working voltage: 4.5V – 5.5V (On-board 3.3v LDO Regulator)

– Working current: 240mA(MAX)

– Selectable working mode: On-board toggle switch. UART side for serial TTL debugging by AT commands, PROG for firmware programming

– USB to serial TTL chip: CH340G

– Logic level: 3.3V

– Serial port baud rate: 1150 (default), can be modified to other values Sby AT command

– Serial communication format: 8N1

– Antenna Type: Built-in PCB antenna is available.

– Wireless Network Mode: station / soft AP / Soft AP + station

– Wireless criteria: 802.11 b / g / n

– WIFI @ 2.4 GHz, support for WPA / WPA2 security mode

– It is very easy to design projects by AT command

– Applications: Home automation, sensor networks, industrial wireless control, smart car.

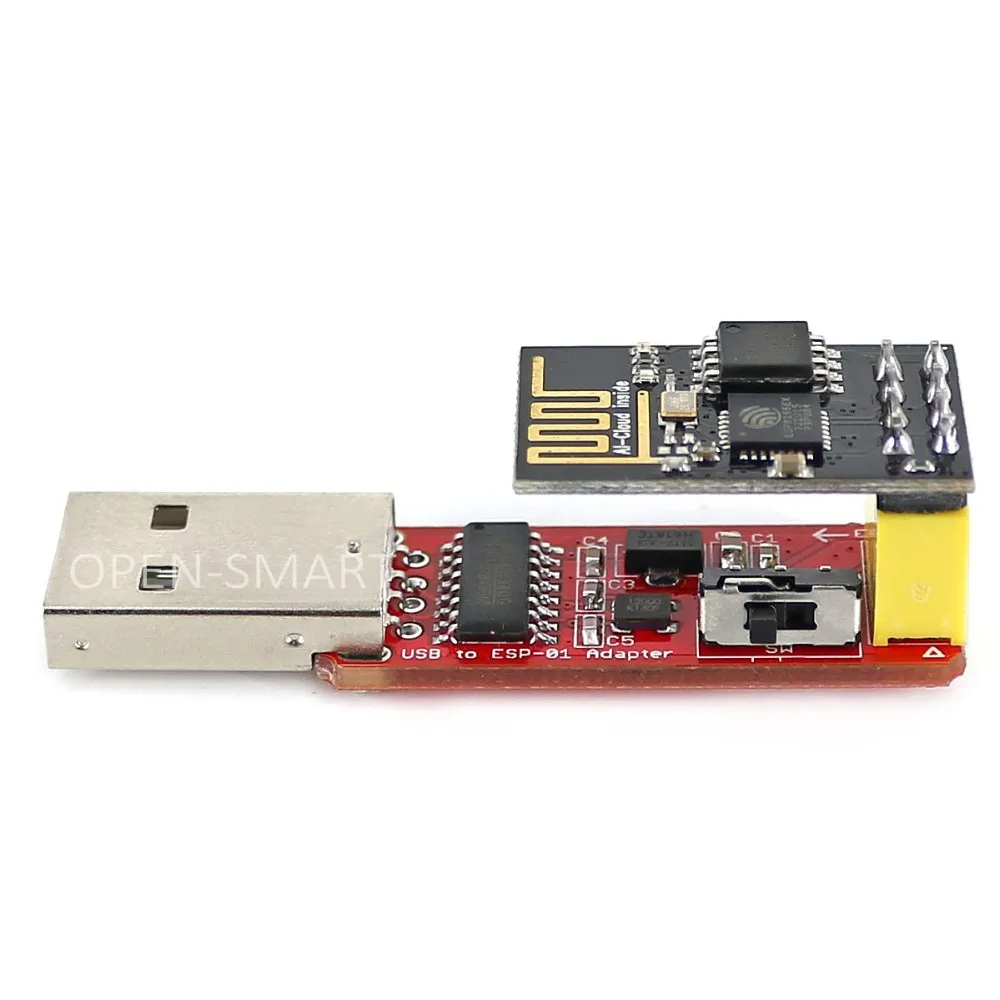

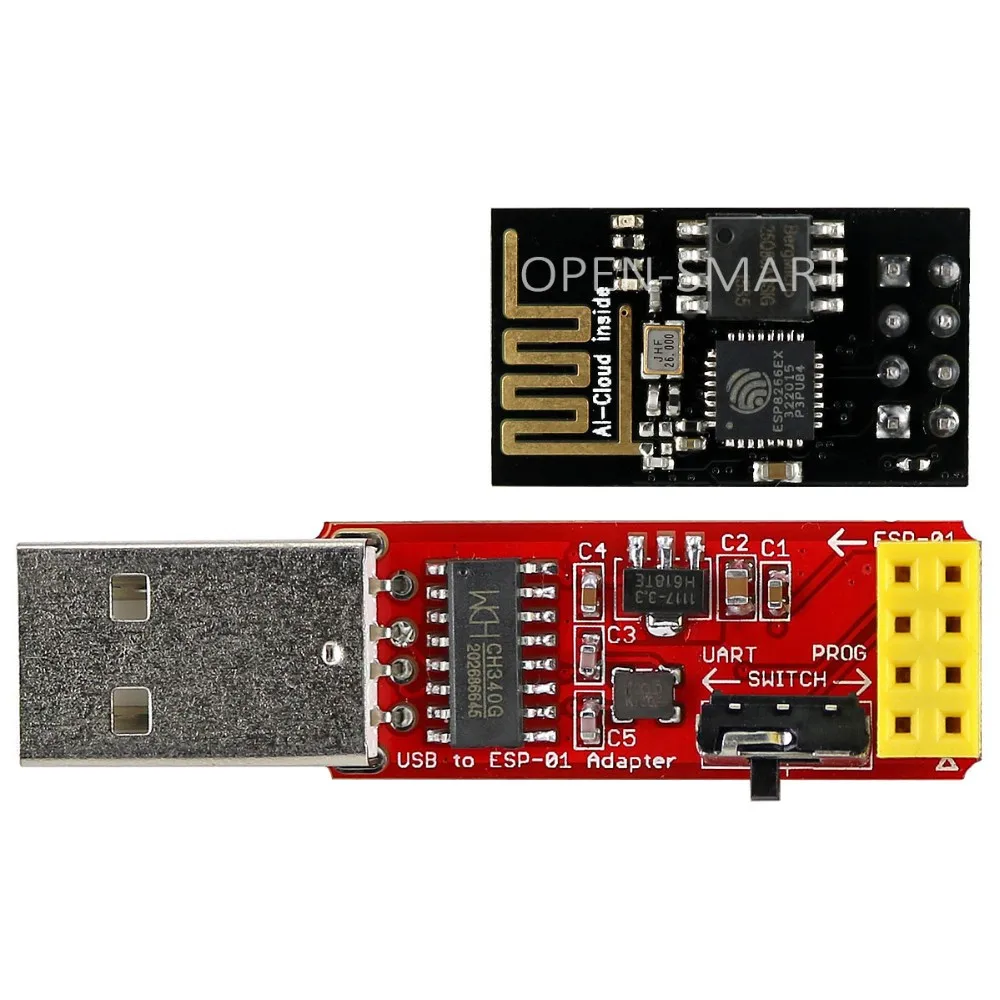

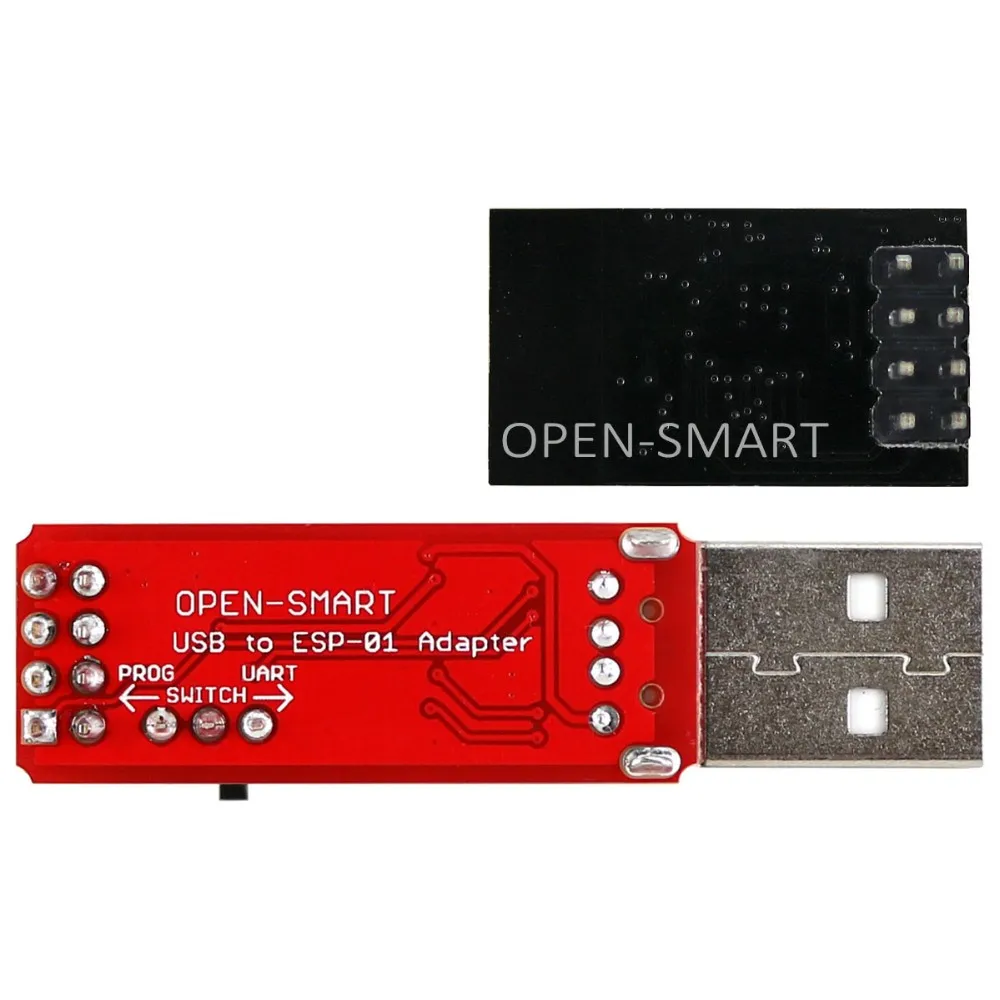

Photos
Part List ( Schematics and program can be sent via e-mail,Please contact us)

1 X ESP-01 module

1 X USB to ESP-01 adapter module

Download Link : https://drive.google.com/drive/folders/0B6uNNXJ2z4CxT3QyNGxtTDk4OFE?usp=sharing

Dear Friends, All the Package Tracking informations can find here: 17track.net

Please Note That

If we ship item by express, such as DHL, EMS, UPS, FedEx or other express method, You need to pay Customs Tax according to your country law.

Please learn about Customs Tax information before place order. If then item return to us because you refuse to pay Customs tax,

you need to pay return shipping fee. Thanks for your kind understanding and cooperation.

Additional Information

Type	Drive IC
Model Number	ESP-01 + USB to ESP-01 Adapter Module
Operating Temperature	0-70
Brand Name	OPEN-SMART
Dissipation Power	0.5W
Supply Voltage	5V
Application	Other
